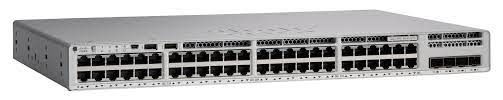

Catalyst 9200L 48-port data, 4 x 1G, Net
|
Downlinks total 10/100/1000 or PoE+ copper ports |
48 ports full PoE+ |
|
Uplink configuration |
4x 10G fixed uplinks |
|
Default primary AC power supply |
PWR-C5-1KWAC |
|
Fans |
Fixed redundant |
|
Software |
Network Essentials |
|
Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
|
Virtual Networks |
1 |
|
Stacking bandwidth |
80 Gbps |
|
Total number of MAC addresses |
16,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
11,000 (8,000 direct routes and 3,000 indirect routes) |
|
IPv4 routing entries |
3,000 |
|
IPv6 routing entries |
1,500 |
|
Multicast routing scale |
1,000 |
|
QoS scale entries |
1,000 |
|
ACL scale entries |
1,500 |
|
Packet buffer per SKU |
6 MB buffers for 24- or 48-port Gigabit Ethernet models |
|
Flexible NetFlow (FNF) entries |
16,000 flows on 24- and 48-port Gigabit Ethernet models |
|
DRAM |
2 GB |
|
Flash |
4 GB |
|
VLAN IDs |
1024 |
|
Total Switched Virtual Interfaces (SVIs) |
512 |
|
Jumbo frames |
9198 bytes |
|
Wireless bandwidth per switch |
N/A |
|
Switching capacity |
176 Gbps |
|
Forwarding rate |
261.9 Mpps |
|
Mean time between failures (hours) |
346,270 |
