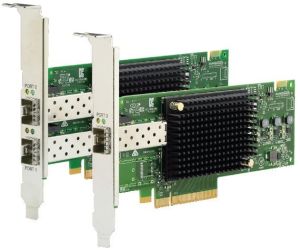

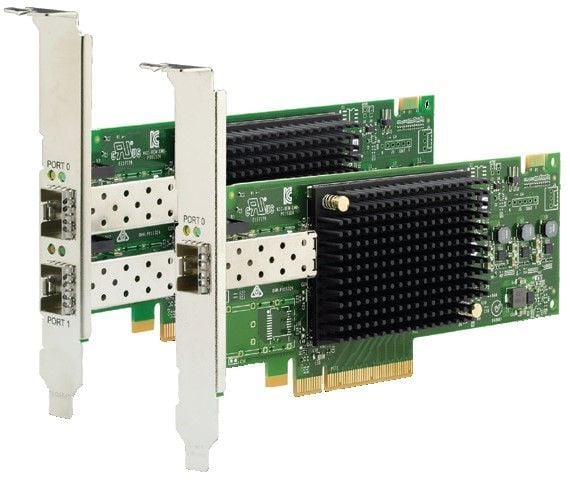

LENOVO 01CV840 EMULEX 16GB FC DUAL-PORT HBA THINKSYSTEM
44.130,75 TL
Kategori
Marka
Stok Kodu
210224933
Garanti Süresi
24 Ay
Fiyat
1.046,99 USD + KDV
Havale
43.248,14 TL
(%2,00 havale indirimi)
*12.528,72 TL den başlayan taksitlerle!!
Technical specifications
The Emulex 16 Gb Gen 6 FC HBAs have the following specifications:
- Based on the LPe31000 (single port) and LPe31002 (dual port) adapters
- I/O controller: Emulex Engine 501 (XE501) I/O Controller (IOC)
- Host interface: PCIe 3.0 x8
- Ports: Single-port and dual-port SFP+ based adapters
- Link speed: Support for 16 Gb, 8 Gb and 4 Gb FC link speeds, which are automatically negotiated
- Data rate: 14.025 Gbps (1600 MBps), 8.5 Gbps (800 MBps), and 4.25 Gbps (400 MBps) autosensing (per port), with full duplex
- Performance: Up to 1,600,000 IOPS
- Industry standards:
- Current ANSI/IETF standards: FC-PI-4, FC-PI-5, FC-PI-6 , FC-FS-3, FC-LS-2, FC-GS-6, FC-DA, FC-DA2, FCP-4, SPC-4, SBC-3, and SSC-4
- Legacy ANSI/IETF standards: FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-FS, FC-GS-2/3/4/5, FCP-2/3, FC-HBA, FC-TAPE, FC-MI, SPC-3, SBC-2, SSC-2, and SSC-3
- Topology: Point-to-point and switched fabric
- Hot-pluggable 16 Gbps Fibre Channel SFP+ short wave optical transceivers (850 nm) with LC connectors (included with the adapters). Note: Other transceivers are not supported.
- Distance support:
- Operating at 16 Gbps:
- Up to 15 m on 62.5/125 µm OM1 Multi-Mode Fiber (MMF)
- Up to 35 m on 50/125 µm OM2 MMF
- Up to 100 m on 50/125 µm OM3 MMF
-
Up to 125 m on 50/125 µm OM4 MMF
- Operating at 8 Gbps:
- Up to 21 m on 62.5/125 µm OM1 MMF
- Up to 50 m on 50/125 µm OM2 MMF
-
Up to 150 m on 50/125 µm OM3 MMF
- Operating at 4 Gbps:
- Up to 70 m on 62.5/125 µm OM1 MMF
- Up to 150 m on 50/125 µm OM2 MMF
The Emulex 16 Gb Gen 6 FC HBAs have the following specifications:
- Based on the LPe31000 (single port) and LPe31002 (dual port) adapters
- I/O controller: Emulex Engine 501 (XE501) I/O Controller (IOC)
- Host interface: PCIe 3.0 x8
- Ports: Single-port and dual-port SFP+ based adapters
- Link speed: Support for 16 Gb, 8 Gb and 4 Gb FC link speeds, which are automatically negotiated
- Data rate: 14.025 Gbps (1600 MBps), 8.5 Gbps (800 MBps), and 4.25 Gbps (400 MBps) autosensing (per port), with full duplex
- Performance: Up to 1,600,000 IOPS
- Industry standards:
- Current ANSI/IETF standards: FC-PI-4, FC-PI-5, FC-PI-6 , FC-FS-3, FC-LS-2, FC-GS-6, FC-DA, FC-DA2, FCP-4, SPC-4, SBC-3, and SSC-4
- Legacy ANSI/IETF standards: FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-FS, FC-GS-2/3/4/5, FCP-2/3, FC-HBA, FC-TAPE, FC-MI, SPC-3, SBC-2, SSC-2, and SSC-3
- Topology: Point-to-point and switched fabric
- Hot-pluggable 16 Gbps Fibre Channel SFP+ short wave optical transceivers (850 nm) with LC connectors (included with the adapters). Note: Other transceivers are not supported.
- Distance support:
- Operating at 16 Gbps:
- Up to 15 m on 62.5/125 µm OM1 Multi-Mode Fiber (MMF)
- Up to 35 m on 50/125 µm OM2 MMF
- Up to 100 m on 50/125 µm OM3 MMF
-
Up to 125 m on 50/125 µm OM4 MMF
- Operating at 8 Gbps:
- Up to 21 m on 62.5/125 µm OM1 MMF
- Up to 50 m on 50/125 µm OM2 MMF
-
Up to 150 m on 50/125 µm OM3 MMF
- Operating at 4 Gbps:
- Up to 70 m on 62.5/125 µm OM1 MMF
- Up to 150 m on 50/125 µm OM2 MMF
- Operating at 16 Gbps:
