İşlemci
İşlemci üreticisi
The manufacturer that produced the processor.
AMD
İşlemci soketi
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
Soket AM5
İşlemcilerle uyumlu
A processor which is compatible with this device
AMD Ryzen™ 7
Maks. SMP işlemci sayısı
1
Hafıza
Destekli hafıza türü
Types of memory which can be used with the product.
DDR5-SDRAM
Bellek yuvalarının sayısı
4
Hafıza alanı türü
A memory slot
DIMM
Hafıza kanalları
Çift kanallı
Maksimum bellek
Bilgisayarlarda kullanılan bu bellek saniyede yüzlerce bilgiyi günceller ve devreleri tazeler.
128 GB
Depolama yöneticisi
Desteklenen depolama sürücüsü tipleri
The type of storage drives the device is compatible with.
HDD & SSD
Desteklenen depolama sürücüsü arayüzleri
M.2, SATA II
RAID seviyesi
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 10
Dahili I/O
USB 2.0 bağlayıcıları
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
4
USB 3.2 Gen 1 (3.1 Gen 1) konnektörleri
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
4
USB 3.2 Gen 2 (3.1 Gen 2) konnektörleri
4
SATA III bağlantı sayısı
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
6
Ses konektörü
Ön panel konektörü
CPU fan bağlayıcı
Şasi giriş bağlayıcı
RGB LED pim başlığı
Arka panel I/O portları
USB 2.0 bağlantı noktası sayısı
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed")
6
USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı
4
USB 3.2 Gen 2 (3.1 Gen 2) Tip-A port sayısı
6
USB 3.2 Gen 2 (3.1 Gen 2) Tip-C port sayısı
Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
2
USB 3.2 2x2 C tipi portların sayısı
1
Ethernet LAN (RJ-45) port sayısı
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Arka panel I/O portları
HDMI port sayısı
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
HDMI versiyonu
2.1
DisplayPort
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
1
DisplayPort versiyonu
1.4
S/PDIF çıkışı
S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.
Ağ Bağlantıları
Ethernet LAN bağlantısı
An Ethernet LAN (Local Area Network) interface is present
Ethernet arayüz türü
2.5 Gigabit Ethernet
LAN kontrolörü
Realtek RTL8125-BG
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standardı
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 6E (802.11ax)
Wi-Fi standartları
The type of wireless local area network (LAN). It can be ad-hoc
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers
Bluetooth versiyonu
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
5.2
Özellikler
Anakart yongası
The chipset connects the microprocessor to the rest of the motherboard.
AMD X670
Ses çipi
Realtek ALC4080
Ses çıkış kanalı sayısı
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 kanallar
Bileşen
What this product is used as a part of (component for).
PC
Anakart form faktörü
Design of the motherboard (ATX
ATX
Analevha yonga kümesi ailesi
The category of motherboard chipset e.g. Intel
AMD
Desteklenen Windows çalışma sistemleri
Windows vesions wich can be used with the device.
Windows 10 Home x64, Windows 11 x64
Ağırlık & boyutlar
Genişlik
The measurement or extent of something from side to side.
304,8 mm
Derinlik
The distance from the front to the back of something.
243,8 mm
Paket içeriği
Pakete dahil kablolar
SATA
Sürücüler dahil

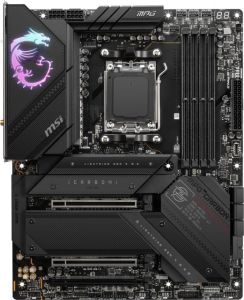

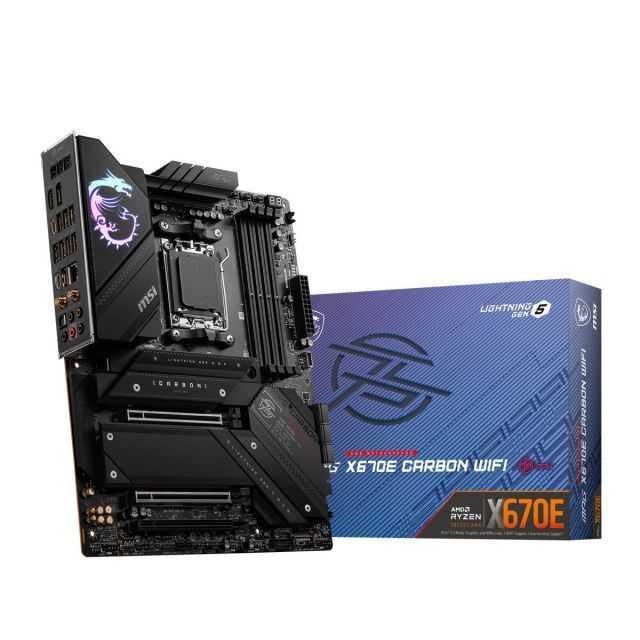

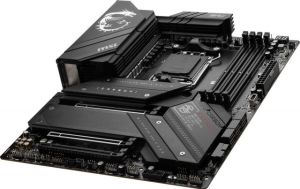

MSI MPG X670E CARBON WIFI AM5 DDR5 4x M.2 USB 3.2 HDMI DP 2.5G LAN AMD WIFI 6E RGB ATX
