VSP4900- 12MXU-12XE	VSP4900-24XE	VSP4900-24S	VSP4900-48P
Performance and Scaling
Max Active 10/100/ 1000Mb Ports	N/A	0	0	48
Max Active 100M/1Gb/ 2.5Gb/5Gb/ 10Gb Ports	12	0	0	0
Max Active 100M/1Gb SFP ports	0	24	0	0
Max Active 1/10Gb SFP+ ports	16	28	4	4
Max Active 10/ 25Gb SPF28 ports	4	4	2	2
Max Active 40Gb QSFP+ ports*	2	2	1	1
Aggregated Switch Bandwidth	680 Gbps	680 Gbps	148 Gbps	196 Gbps
Frame Forwarding Rate	505.9 Mpps	505.9 Mpps	110.1 Mpps	145.8 Mpps
External Ports/Slot
Ports/Slots	12 x 1/2.5/5/10GBASE-T 802.3bt Type3 (60w) ports 12 x 1/10GBASE-X SFP+ ports (unpopulated) MACsec capable (256-bit) 1 x Serial (console port RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 1 x USB Micro-B management port 2 x USB A ports for external USB flash 1 VIM5 slot	24 x 1/10GBASE-X SFP+ ports (unpopulated) LRM and MACsec capable (256-bit) 1 x Serial (console port RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 1 x USB Micro-B management port 2 x USB A ports for external USB flash 1 VIM5 slot	24 x 100/1000BASE-X SFP ports (unpopulated) 1 x Serial (console port RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 1 x USB Micro-B management port 2 x USB A ports for external USB flash 1 VIM5 slot	48 x 10/100/1000BASE-T 802.3at (30w) ports Full / Half-Duplex MACsec capable (128-bit) 1 x Serial (console port RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 1 x USB Micro-B management port 2 x USB A ports for external USB flash 1 VIM5 slot
VIM Modules
VIM Modules	VIM5-4X: 4 x 1/10GBASE-X SFP+ (unpopulated ports) VIM5-4XE: 4 x 1/10GBASE-X SFP+ (unpopulated ports) LRM capable MACsec capable (256-bit) VIM5-2Y: 2 x 10/25GBASE-X SFP28 (unpopulated ports) VIM5-4Y: 4 x 10/25GBASE-X SFP28 (unpopulated ports) VIM5-4YE: 4 x 10/25GBASE-X SFP28 (unpopulated ports) MACsec capable (256-bit) VIM5-2Q: 2 x 40GBASE-X QSFP+ (unpopulated ports)
Physical Specifications
Dimensions	17.34 in W / 1.7 in H / 19.23 in D 440mm / 43.6mm / 488mm	17.34 in W / 1.7 in H / 19.23 in D 440mm / 43.6mm / 488mm	17.34 in W / 1.7 in H / 19.23 in D 440mm / 43.6mm / 488mm	17.34 in W / 1.7 in H / 19.23 in D 440mm / 43.6mm / 488mm
Net Weight	16.67 lb / 7.58 kg	16.89 lb / 7.66 kg	18.01 lb / 8.17 kg	18.49 lb / 8.39 Kg
Minimum/Maximum Power Consumption and Heat Dissipation
Minimum Power Consumption (Watts)	73	80	52	74
Minimum Heat Dissipation (BTU/hr)	250	271	179	254
Maximum Power Consumption (Watts)1	970	207	173	1746
Maximum Heat Dissipation (BTU/hr)2	854	707	590	1046

Performance and Scale

Memory
- VSP4900-48P and VSP4900-24S
  - 2GB DRAM / 8GB eMMC NVRAM
- VSP4900-12MXU-12XE and VSP4900-24XE
  - 8GB DRAM / 8GB eMMC NVRAM
Layer 2
- MAC Address: up to 80,000
- Port-based VLANs: 4,059
- MSTP Instances: 12
- LACP Links per Group: 8 Active
Layer 3 IPv4 Routing Services
- ARP Entries: up to 32,000
- IP Routes: up to 15,488
- RIP Interfaces: 200
- OSPF Interfaces: 500
- BGP Peers: 256
- VRF Instances: up to 256
- Layer 3 IPv6 Routing Services
- Neighbors: up to 8,000
- IP Routes: up to 7,744
- RIPng Interfaces: 48
- OSPFv3 Interfaces: 500
- BGPv6 Peers: 256
- VRF Instances: up to 256
Multicast
- IGMP Interfaces: 4,059
- PIM Active Interfaces: 128
- MLD Interfaces: 4,059
- IP Multicast Streams: 6,000
Fabric Connect
- MAC Address: 40,000
- NNI Interfaces/Adjacencies: up to 255
- BEB Nodes per VSN: 500
- BCB/ BEB Nodes per Region: 550
- L2 Virtual Service Networks: 4,059
- L3 Virtual Service Networks: up to 256
- IP Shortcut Routes: IPv4 up to 15,488 and IPv6 7,488
- L2 Multicast Virtual Service Networks: 2,000
- L3 Multicast Virtual Service Networks: 256
- Maximum SGVs: 6,000
QoS and Filtering
- IPv4 ACE: 1536 (1024 Security + 512 QOS) Ingress and 248 Egress
- IPv6 ACE: 1024 Ingress and 256 Egress
- QoS priority queues- 8
Operations and Management
- Mirrored Ports: 49
- sFlow: up to 3100 samples per second
- Fabric RSPAN: 1,000 VLAN IDs

Environmental

Environmental Specifications
- EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage
- EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transportation
- EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational
- EN/ETSI 300 753 (1997-10) - Acoustic Noise
- ASTM D3580 Random Vibration Unpackaged 1.5 G
Environmental Compliance
- EU RoHS 2011/65/EU
- EU WEEE 2012/19/EU
- China RoHS SJ/T 11363-2006
- Taiwan RoHS CNS 15663(2013.7)
Operating Conditions
- Temp: 0° C to 45° C (32° F to 113° F)
- Humidity: 10% to 95% relative humidity, non-condensing
- Altitude: 0 to 3,000 meters (9,850 feet)
- Shock (half sine) 30m/s2 (3G), 11ms, 60 shocks
- Random vibration: 3 to 500 Hz at 1.5 G rms
Packaging and Storage Specifications
- Temp: -40° C to 70° C (-40° F to 158° F)
- Humidity: 10% to 95% relative humidity, non-condensing
- Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
- Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G
- Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz
- Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)

Regulatory and Safety

North American ITE
- UL 60950-1
- UL 62368-1
- Complies with FCC 21CFR 1040.10 (U.S. Laser Safety)
- CDRH Letter of Approval (US FDA Approval)
- CAN/CSA 22.2 No. 60950-1
- CAN/CSA No. 22.2 62368-1-14
European ITE
- EN 60950-1, EN 62368-1
- EN 60825-1Class 1 (Lasers Safety)
- 2014 / 35/ EU Low Voltage Directive
International ITE
- CB Report & Certificate per IEC 60950-1 AS/NZS 60950-1 (Australia /New Zealand)
- IEC 62368-1
- GB 4943.1-2011
- CNS 14336-1

EMI/EMC Standards

North American EMC for ITE
- FCC CFR 47 part 15 Class A (USA)
- ICES-003 Class A (Canada)
European EMC Standards

EN 55032 Class A
EN 55024
EN 55035
EN 61000-3-2,2014 (Harmonics)
EN 61000-3-3 2013 (Flicker)
EN 300 386 v1.6.1 (EMC Telecommunications)
2014/30/EU EMC Directive
EN 55011 Class A

International EMC Certifications
- CISPR 32, Class A (International Emissions)
- AS/NZS CISPR32
- CISPR 24 Class A (International Immunity)
- IEC 61000-4-2 / EN 61000-4-2 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria A
- IEC 61000-4-3 /EN 61000-4-3 Radiated Immunity 10V/m, Criteria A
- IEC 61000-4-4 / EN 61000-4-4 Transient Burst, 1 kV, Criteria A
- IEC 61000-4-5 /EN 61000-4-5 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A
- IEC 61000-4-6 Conducted Immunity, 0.15-80 MHz, 10V/m unmod. RMS, Criteria A
- IEC/EN 61000-4-11 Power Dips & Interruptions, >30%, 25 periods, Criteria C
- IEC 61000-4-8 / EN 61000-4-8
- CISPER 11 Class A
- GB/T 9254-2008
Country Specific
- VCCI Class A (Japan Emissions)
- ACMA RCM (Australia Emissions)
- CCC Mark (China)
- KCC Mark, EMC Approval (Korea)
- EAC Mark (Custom Union)
- NRCS / ICASA Mark (South Africa)
- BSMI Mark (Taiwan)
Telecom Standards
- CE 2.0 Compliant

IEEE 802.3 Media Access Standards

IEEE 802.3ab 1000BASE-T
IEEE 802.3ae 10GBASE-X
IEEE 802.3aq 10GBASE-LRM
25Gb Ethernet implemented per Ethernet Consortium specification and IEEE 802.3 standard
IEEE 802.3ba / 802.3bm 40GBASE-X
IEEE 802.3at PoE Plus
IEEE 802.3az Energy Efficient Ethernet

Yorumlar

Bu ürüne ilk yorumu siz yapın!

Yorum Yaz

Taksit Seçenekleri

Önerileriniz

Bu ürünün fiyat bilgisi, resim, ürün açıklamalarında ve diğer konularda yetersiz gördüğünüz noktaları öneri formunu kullanarak tarafımıza iletebilirsiniz.
Görüş ve önerileriniz için teşekkür ederiz.

Ürün resmi kalitesiz, bozuk veya görüntülenemiyor.

Ürün açıklamasında eksik bilgiler bulunuyor.

Ürün bilgilerinde hatalar bulunuyor.

Ürün fiyatı diğer sitelerden daha pahalı.

Bu ürüne benzer farklı alternatifler olmalı.

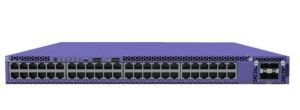

VSP4900-24XE-B3 Anahtarlama Cihazı Switch-VSP4900-24XE Bundle includes VSP4900-24XE
